Quadralite Atlas

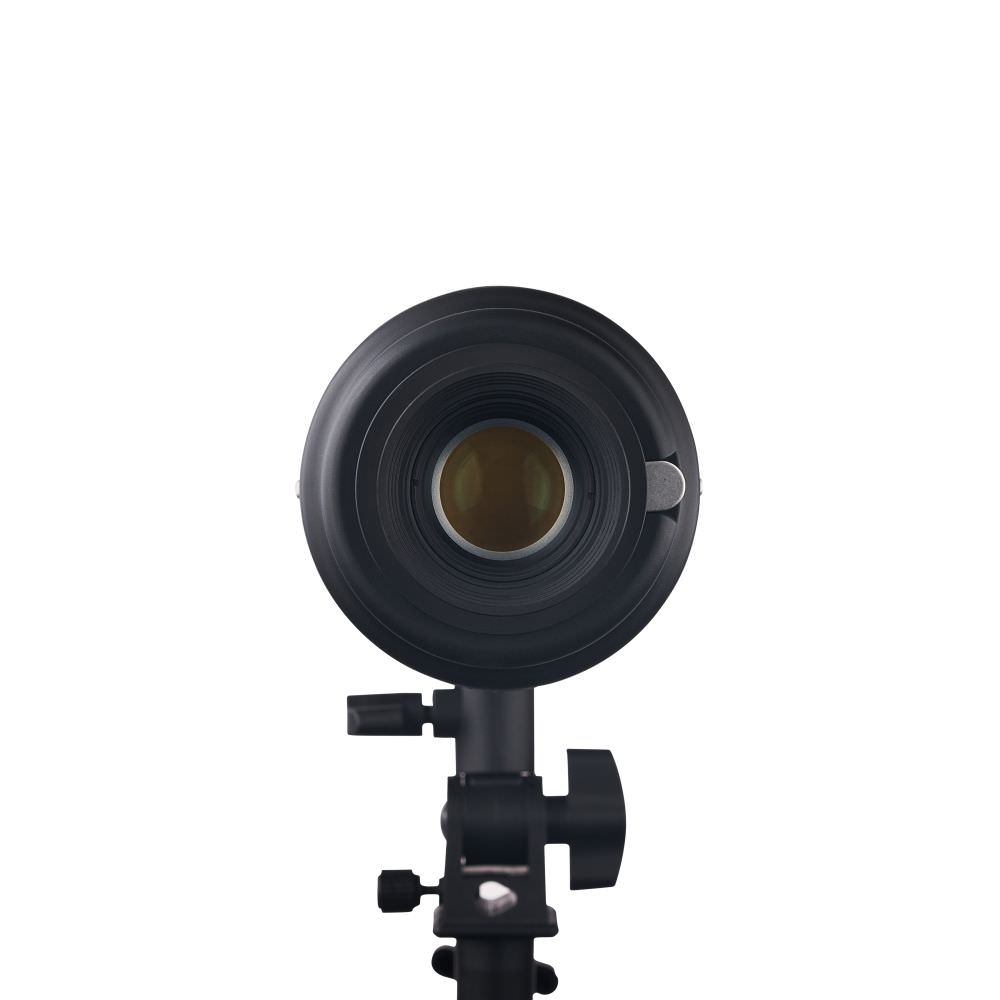

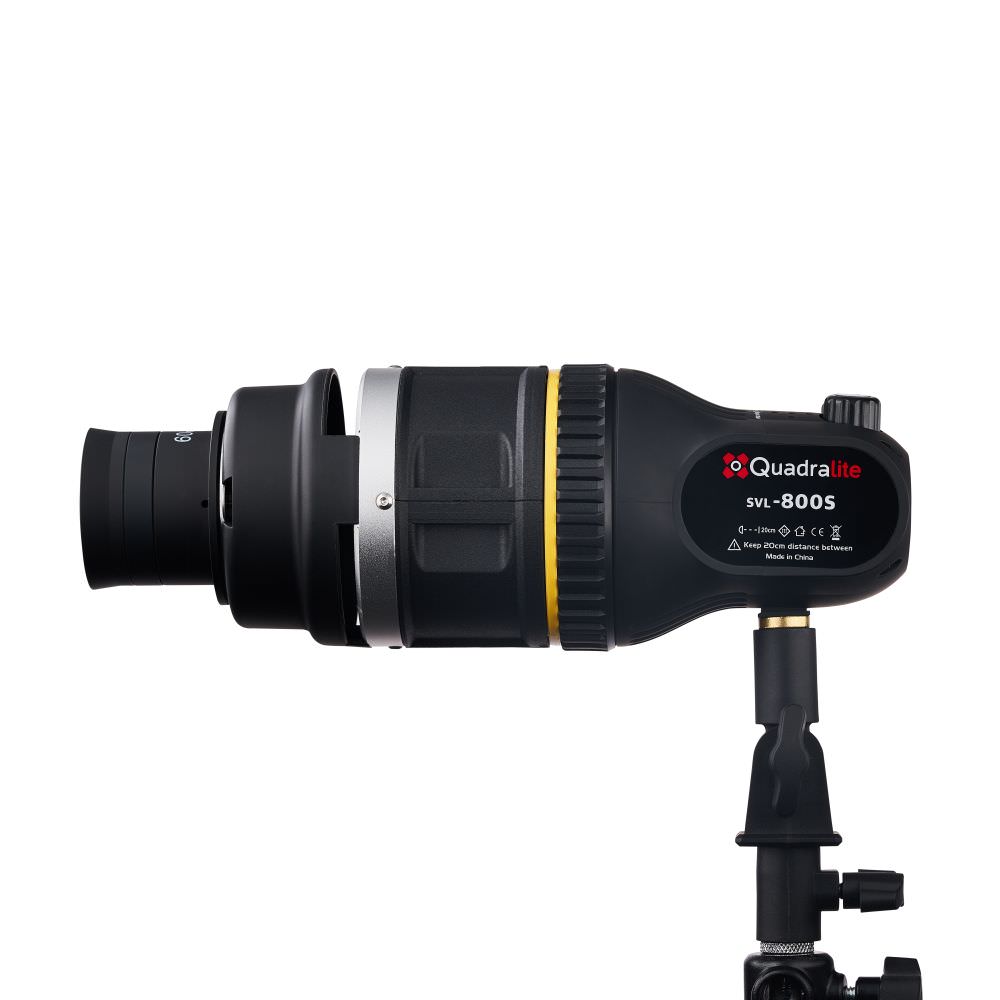

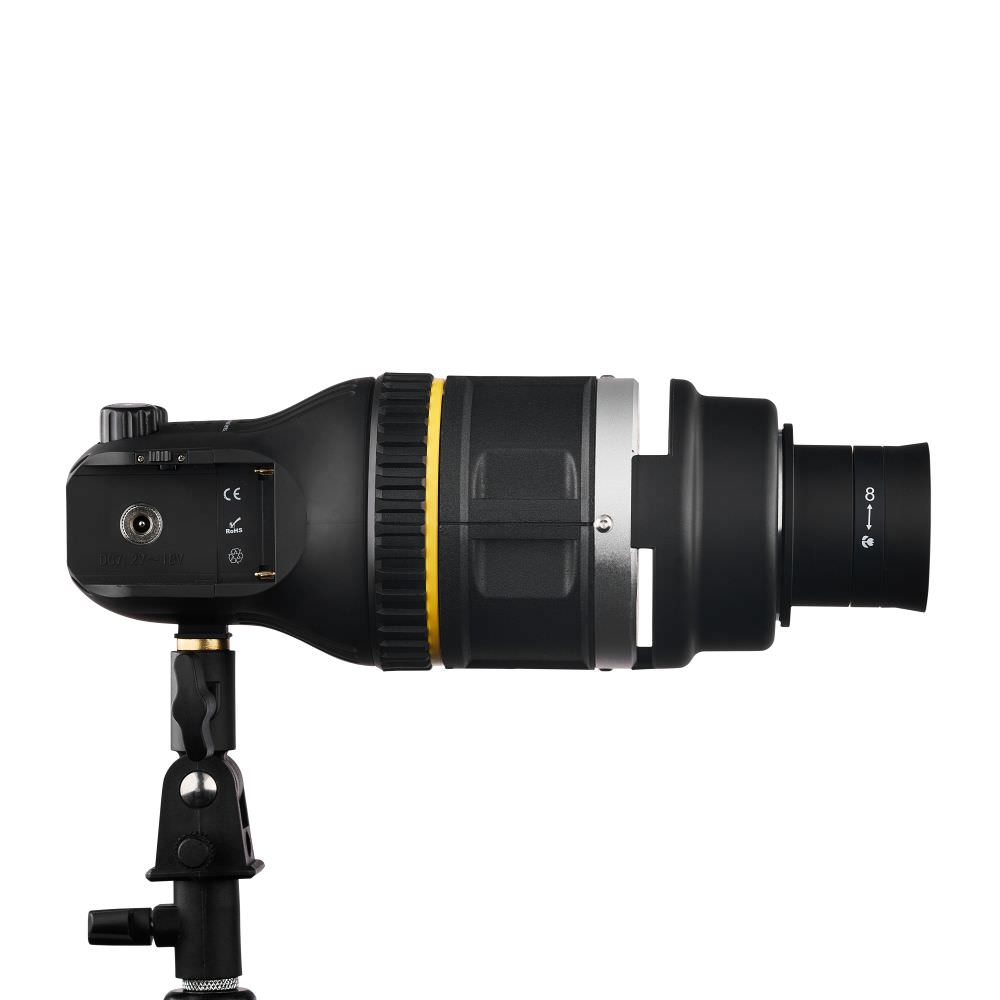

Quadralite SVL-800S LED with snoot
Quadralite SVL-800S LED is integrated with an optical snoot using a Canon EF mount, allowing lenses with different focal lengths to be attached. The set includes the Quadralite L-60 lens (60 mm focal length), six GOBO filters and four color filters for shaping the light beam.
- ✓Model: Quadralite SVL-800S LED with snoot
- ✓Power:: 80W
- ✓Color temperature: 5600K ± 200K
- ✓CRI:: ≥97
- ✓TLCI:: ≥98
- ✓Photometry:: 8600lux/1m
Quadralite SVL-800S LED with snoot
Full power wherever you need it
Quadralite SVL-800S LED is integrated with an optical snoot using a Canon EF mount, allowing lenses with different focal lengths to be attached. The set includes the Quadralite L-60 lens (60 mm focal length), six GOBO filters and four color filters for shaping the light beam.

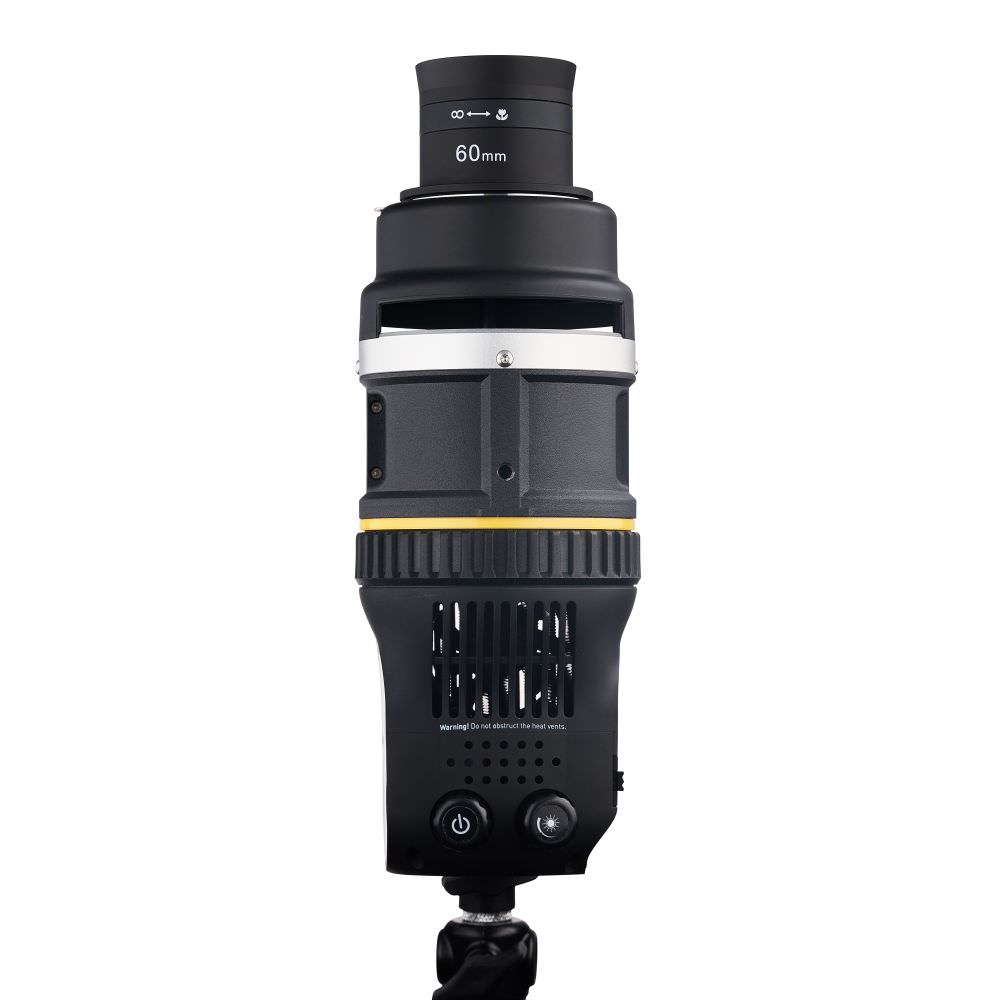

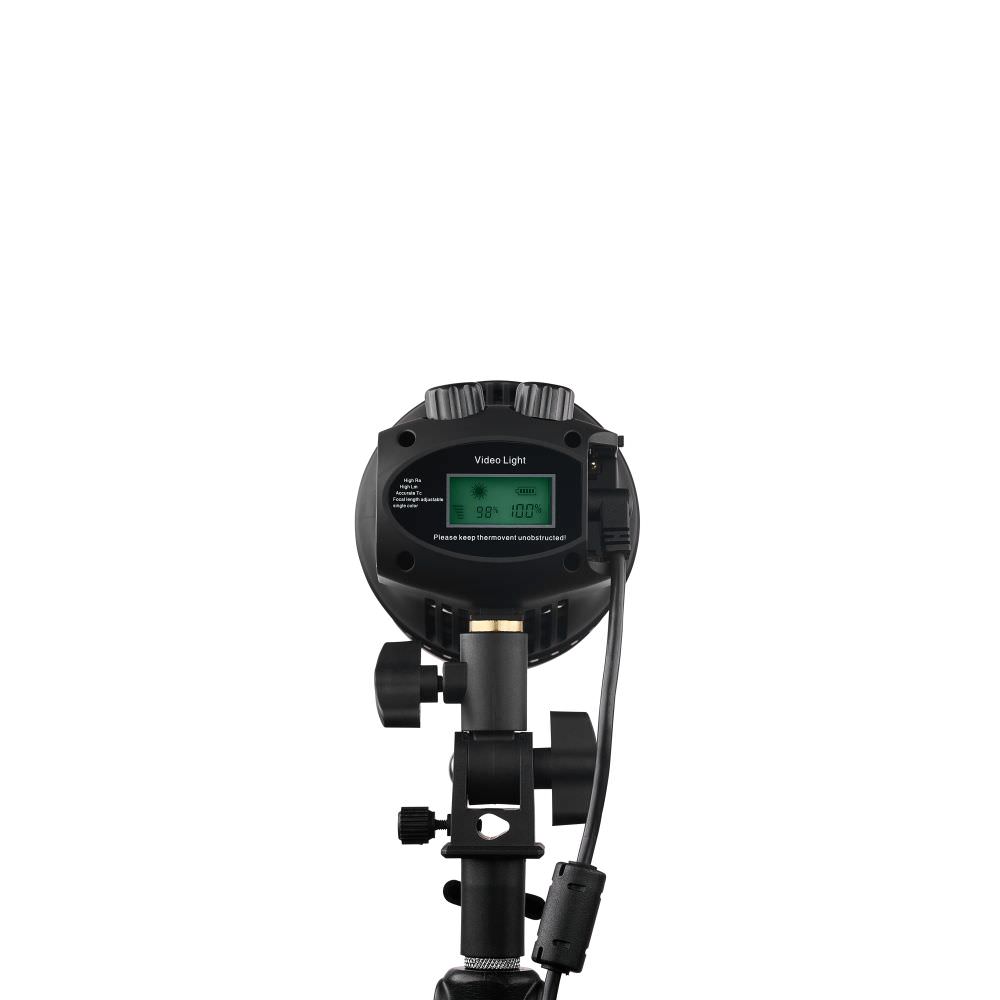

Maximum lamp power is 80 W. The rear panel includes a power switch, a dial for adjusting brightness from 5 to 100% and a display showing either the current output or the charge level of an NP-F battery. The lamp can be powered by the supplied mains adapter or by a compatible NP-F battery, available separately. The included stand mount offers tilt adjustment for positioning the lamp and also provides an umbrella mount. The unit is suitable for both photography and smaller video sets. COB LEDs deliver a stable light output with a high color-rendering index (CRI ≥97) and a color temperature of 5600 K (±200 K). The CREE LED is rated for up to 50,000 hours of operation.

Features
Selected specificationsQuadralite SVL-800S LED is integrated with an optical snoot using a Canon EF mount, allowing lenses with different focal lengths to be attached.
Photometry:
Cooling fan
Built-in Fresnel lens:
Specification
Technical data
All essential product parameters in one place.

- Model
- Quadralite SVL-800S LED with snoot
- Power:
- 80W
- Color temperature
- 5600K ± 200K
- CRI:
- ≥97
- TLCI:
- ≥98
- Photometry:
- 8600lux/1m
- Cooling fan
- Yes
- Built-in Fresnel lens:
- Yes
- Light power adjustment:
- in steps from 5% to 100%
- Mounting
- 5/8" spigot and 1/4" threaded mounting point
- Beam-angle adjustment
- 15-40 degrees
- LED technology:
- COB
- Voltage:
- 110-240V
- Frequency:
- 50-60hz
- LED lifetime
- 50000h
- Power supply
- AC/DC power supply or dedicated NPF battery
- Weight net:
- 2516 g
- Gross weight:
- 2755 g
- Dimensions lights:
- 29x12x10 cm
Studio LED
Quadralite Studio LED – a continuous lighting system for studio work
Quadralite Studio LED includes continuous lights created primarily with more stationary and extensive photographic and film setups in mind. Unlike the Mobile LED group, the emphasis here is primarily on comfortable work on set, the ability to build complete (…)
Explore the full product line →COMPATIBILITY
Compatible products

Quadralite Lens L-150 for optical snoots
SKU: 11162✓Direct fit
View product →
Quadralite Lens L-60 for Optical snoot Pro SN-5260
SKU: 8543✓Direct fit
View product →
Quadralite Gobo sets 58 mm for SN-5260 - 4 pcs
SKU: 9452✓Direct fit
View product →
Quadralite Gobo sets 58 mm for SN-5260 - 6 pcs
SKU: 9453✓Direct fit
View product →
Quadralite Kit iris plates for SN-200LED
SKU: 11114✓Direct fit
View product →
Quadralite Battery adapter (2x NP-F) for SVL
SKU: 11161✓Direct fit
View product →What’s in the box

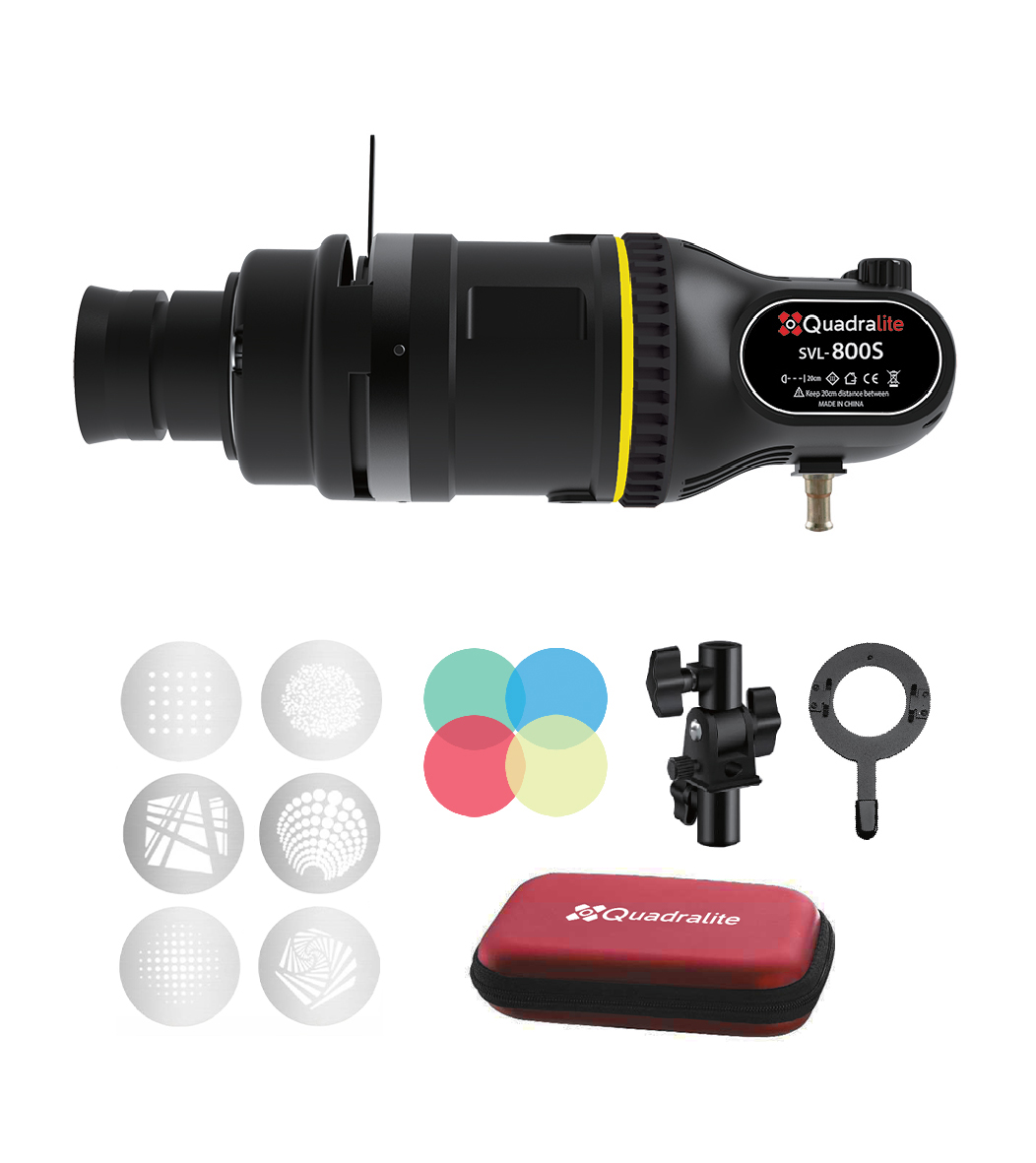

What’s in the box
- ✓Flash Quadralite SVL-800S
- ✓Quadralite lens L-60
- ✓Quadralite gobo, set 6 modifiers light
- ✓4 color Filters

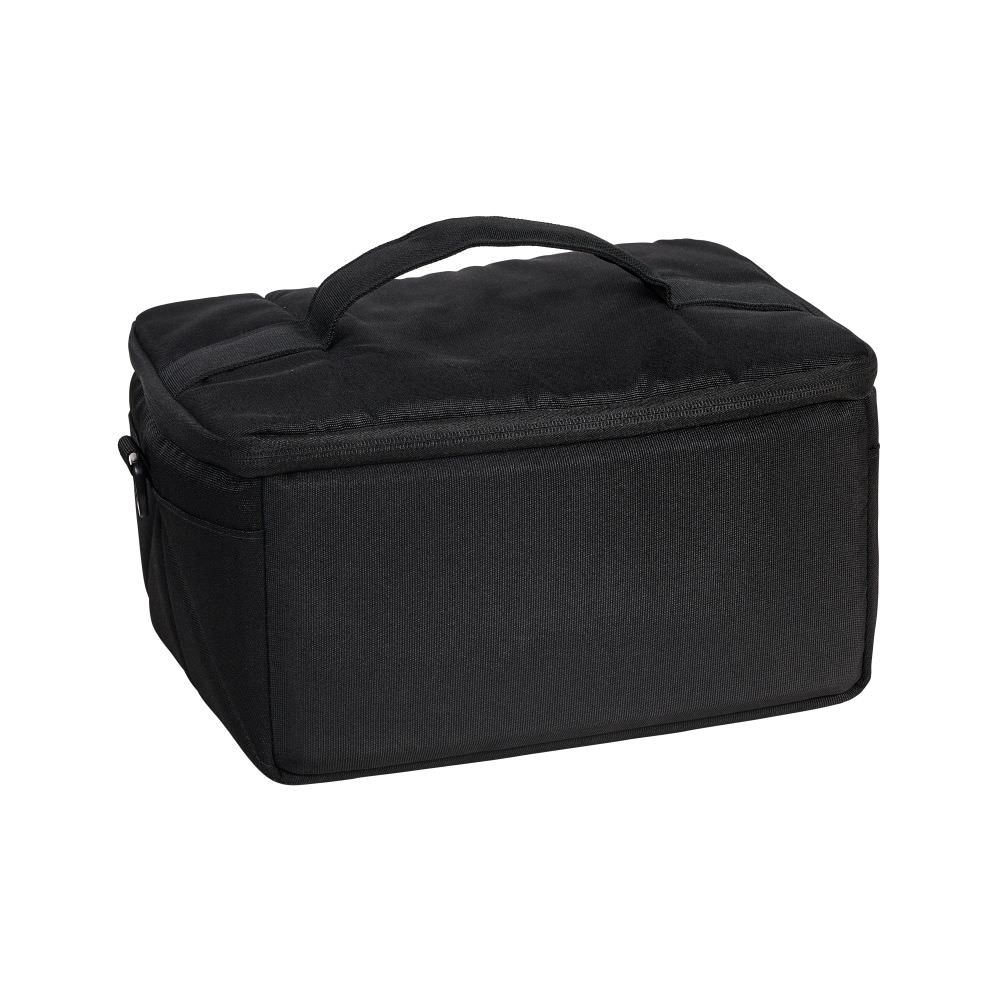

- ✓Bag
- ✓Power adapter
- ✓Stand bracket
- ✓Original packaging
