Quadralite Stroboss V1 Canon flash
V1 features a round flash head that produces more natural and even light distribution across the scene than traditional rectangular speedlights. It also incorporates key technologies such as a high-capacity battery providing up to 480 full-power flashes per charge, the built-in Navigator X wireless triggering system and an LED modeling light.
- ✓Model: Quadralite Stroboss V1 Canon flash
- ✓Compatible with: Canon
- ✓Maximum flash energy: 76 Ws (J)
- ✓Guide number: 42 m (@1/1, ISO100)
- ✓Color temperature: 5600 K ± 200 K
- ✓Flash power adjustment: 8 stops in 1/10-stop increments, 1/1–1/256 (76–0.3 Ws)
Quadralite Stroboss V1 Canon flash
Full power wherever you need it
V1 features a round flash head that produces more natural and even light distribution across the scene than traditional rectangular speedlights. It also incorporates key technologies such as a high-capacity battery providing up to 480 full-power flashes per charge, the built-in Navigator X wireless triggering system and an LED modeling light. Despite its compact size, V1 is powerful, versatile and easy to use, making it the flagship Speedlite in the Quadralite range.

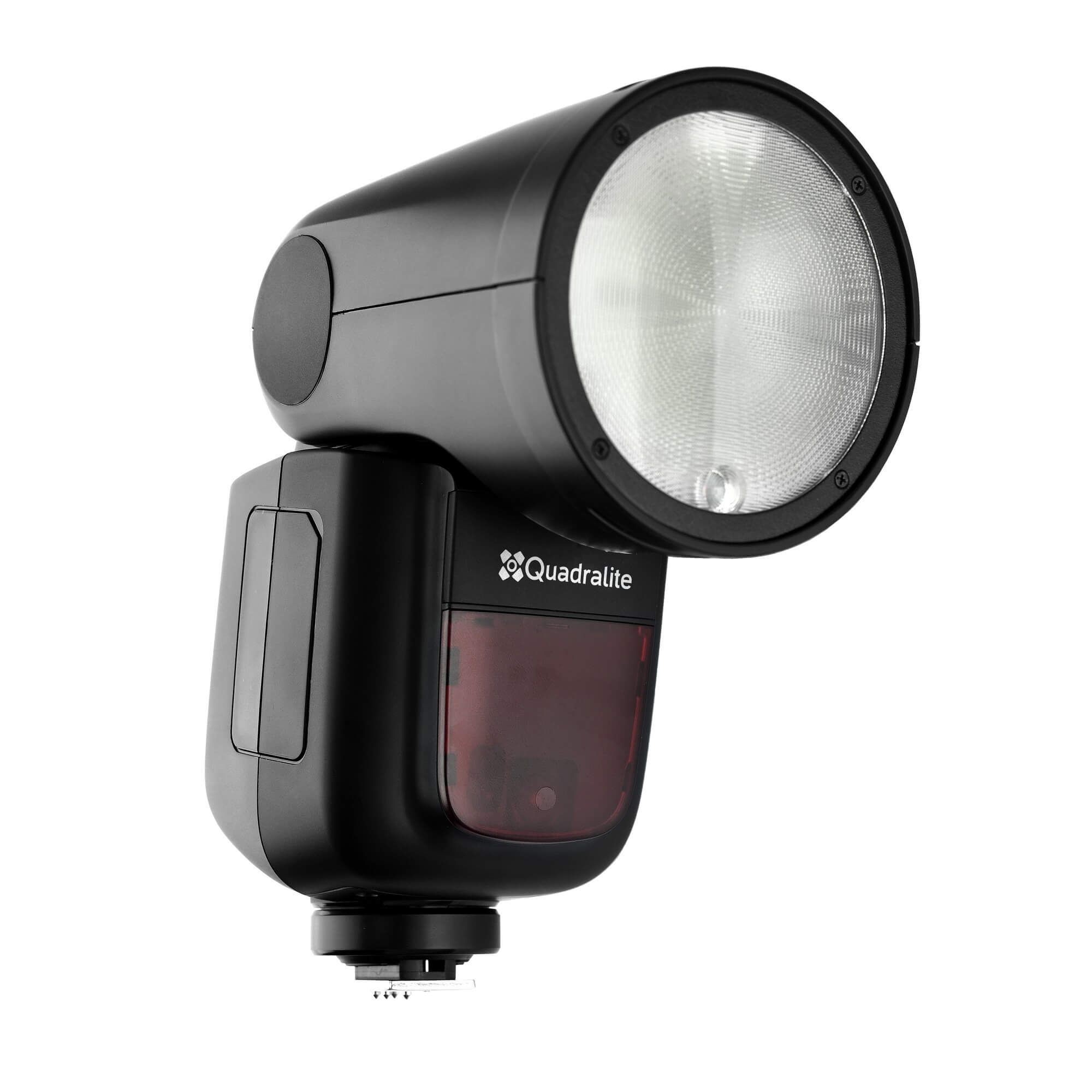

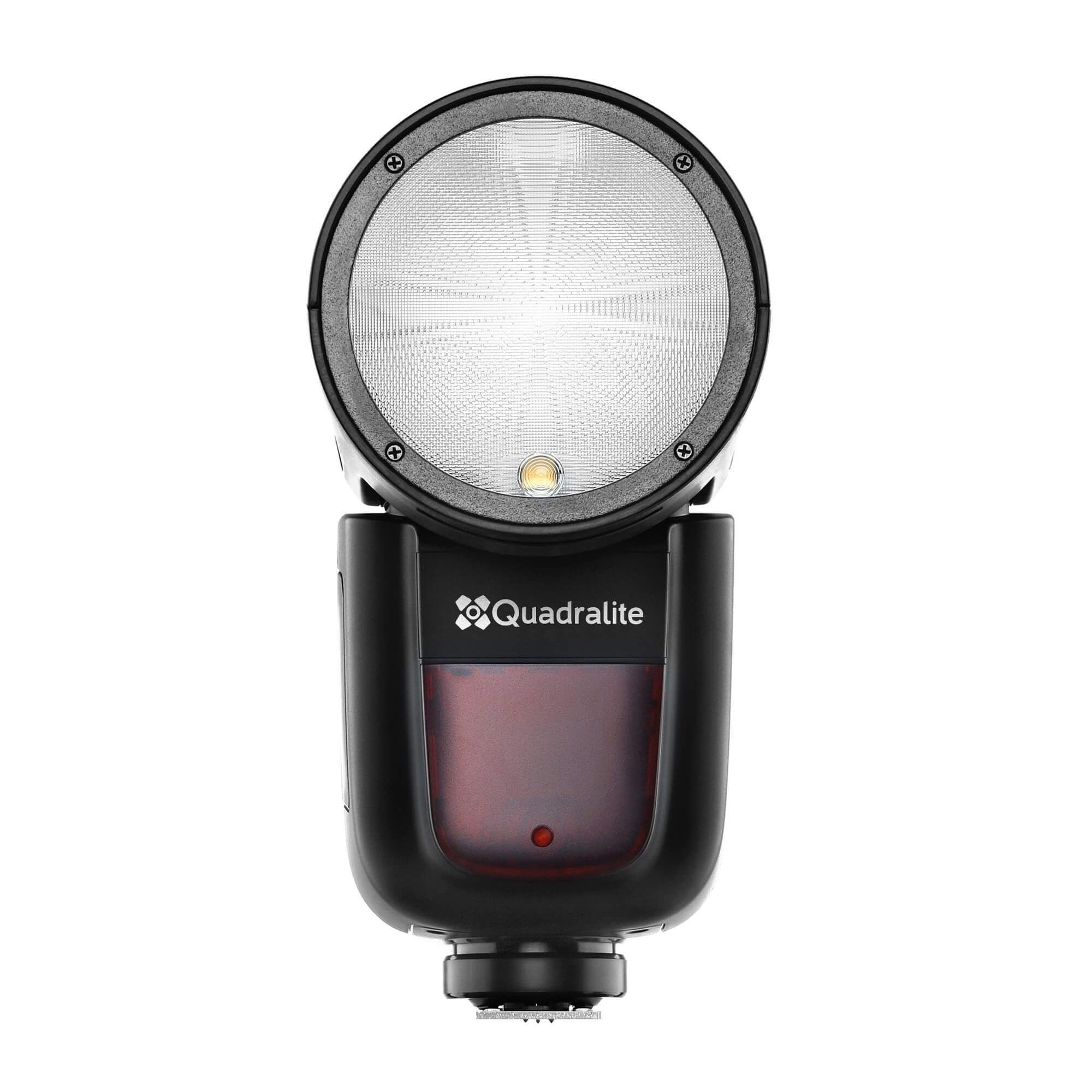

The round V1 head is designed to distribute light evenly across the scene, producing natural-looking illumination even without an additional modifier. This effect is achieved with a parabolic reflector finished with a Fresnel lens. The head also includes a 2 W LED modeling light and a magnetic accessory mount for quick attachment of modifiers such as grids, color filters, barn doors and snoots.
V1 is powered by a high-capacity 2.6 Ah lithium-ion battery that provides up to 480 full-power flashes. One battery is included and can be replaced easily when depleted. With the supplied USB charger, a full recharge takes less than 3 hours.
V1 can be used with the round-head accessory kit originally developed for Reporter 200 TTL. Thanks to the magnetic mounting system, accessories can be attached and removed extremely quickly. A diffuser can be swapped for another in seconds, and several modifiers can also be stacked and used together.
Stroboss V1 includes the Navigator X wireless flash-control system and can be used with other flashes or transmitters such as Navigator X/X2 and Stroboss 36/60. V1 integrates easily with other on-camera, location and studio flash units.
V1 offers an 8-stop flash-power range from 1/1 to 1/256 with precise adjustment in 0.1-stop increments. It is also fast, recycling in less than 1.5 s even after a full-power flash. At 1/256 power it can reach a flash duration as short as 1/20000 s (t0.1). Color-temperature variation between flashes at a given output level is specified at no more than ±200 K.
Detailed warranty terms for Quadralite products can be found on the Warranty page.

Features
Selected specificationsV1 features a round flash head that produces more natural and even light distribution across the scene than traditional rectangular speedlights.
Color temperature
High Speed Sync
Flash duration t0.1
Specification
Technical data
All essential product parameters in one place.

- Model
- Quadralite Stroboss V1 Canon flash
- Compatible with
- Canon
- Maximum flash energy
- 76 Ws (J)
- Guide number
- 42 m (@1/1, ISO100)
- Color temperature
- 5600 K ± 200 K
- Flash power adjustment
- 8 stops in 1/10-stop increments, 1/1–1/256 (76–0.3 Ws)
- Maximum recycle time
- 1.5 s
- Flash modes
- TTL/M/Multi
- High Speed Sync
- up to 1/8000 s
- Flash duration t0.1
- 1/300 s @ 1/1 1/20000 s @1/256
- Stroboscopic flash (Multi)
- for 100 flashes, 100 Hz
- Zoom range
- 28 – 105 mm
- Head adjustment
- in horizontal: from 0° to 330° in vertical: from -7° to 120°
- Modeling light type
- LED
- Max modeling-light power
- 2 W
- Modeling-light color temperature
- 3300 K ± 200 K
- Operating modes
- manual
- Navigator X wireless control
- Yes (built-in Transmitter and Receiver)
- Remote operating modes
- Master/Slave/OFF
- Channels
- 32
- Groups
- 4 (A, B, C, D) in mode Master 5 (A, B, C, D, E) in mode Slave
- Battery
- Battery lithium-ion VB26 7,2 V/2600 mAh
- Performance battery
- approx. 480 flashes for full power lights
- Sync socket
- Yes (2.5mm Jack)
- Photocell
- Yes
- Cooling
- passive
- Firmware update
- Yes (via USB-C port)
- Ready signal
- Audible and visual
- Display
- High-contrast monochrome LCD
- Operating temperature range
- from +10ºC to +40ºC
- Dimensions
- 76x93x197mm
- Weight (without battery)
- 420g
- Weight (with battery)
- 540g
Stroboss
Quadralite Stroboss – a system of compact on-camera flash units
Quadralite Stroboss is a family of flash units mounted on the camera or used off-camera as part of a wireless lighting setup. The series includes many models designed for different camera systems, as well as successive generations of lights that differ in (…)
Explore the full product line →COMPATIBILITY
Compatible products

Quadralite Photo Table L
SKU: 4368✓Direct fit
View product →
Quadralite Photo Table S
SKU: 4367✓Direct fit
View product →
Quadralite Multi-purpose holder with ball head
SKU: 10267✓Direct fit
View product →
Quadralite Stroboss VB-26
SKU: 5694✓Direct fit
View product →
Quadralite Air 260
SKU: 4119✓Direct fit
View product →
Quadralite Air 395
SKU: 4212✓Direct fit
View product →What’s in the box
What’s in the box
- ✓Quadralite Stroboss V1
- ✓Battery
- ✓Charger
- ✓USB cable
- ✓AC power adapter
- ✓Stand
- ✓Carrying case
- ✓Original packaging
