Quadralite Atlas

Quadralite 800 Powerpack

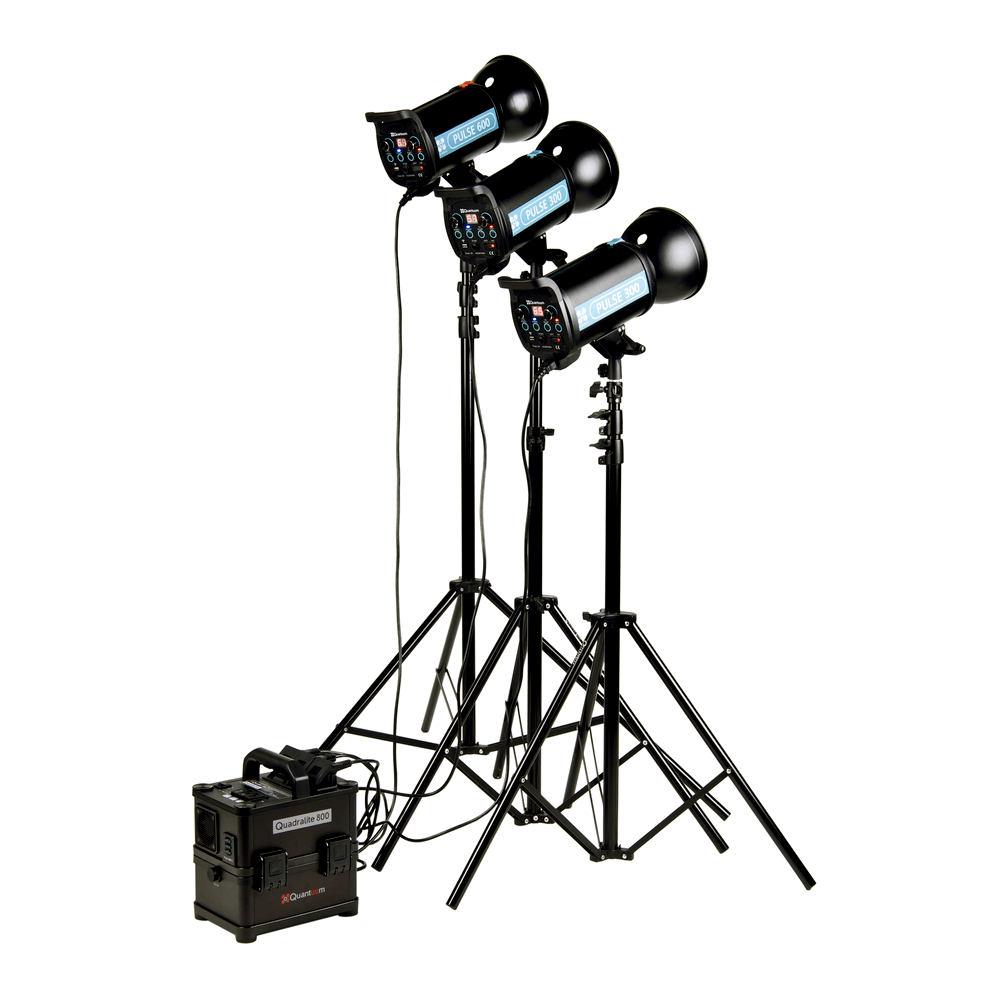

Quadralite 800 Powerpack can power several flash units simultaneously in locations without access to mains electricity. This gives photographers the freedom to plan shoots in a wide range of interesting locations.

  • ✓Dimensions: 267x206x292mm
Where to buy?Download product sheet

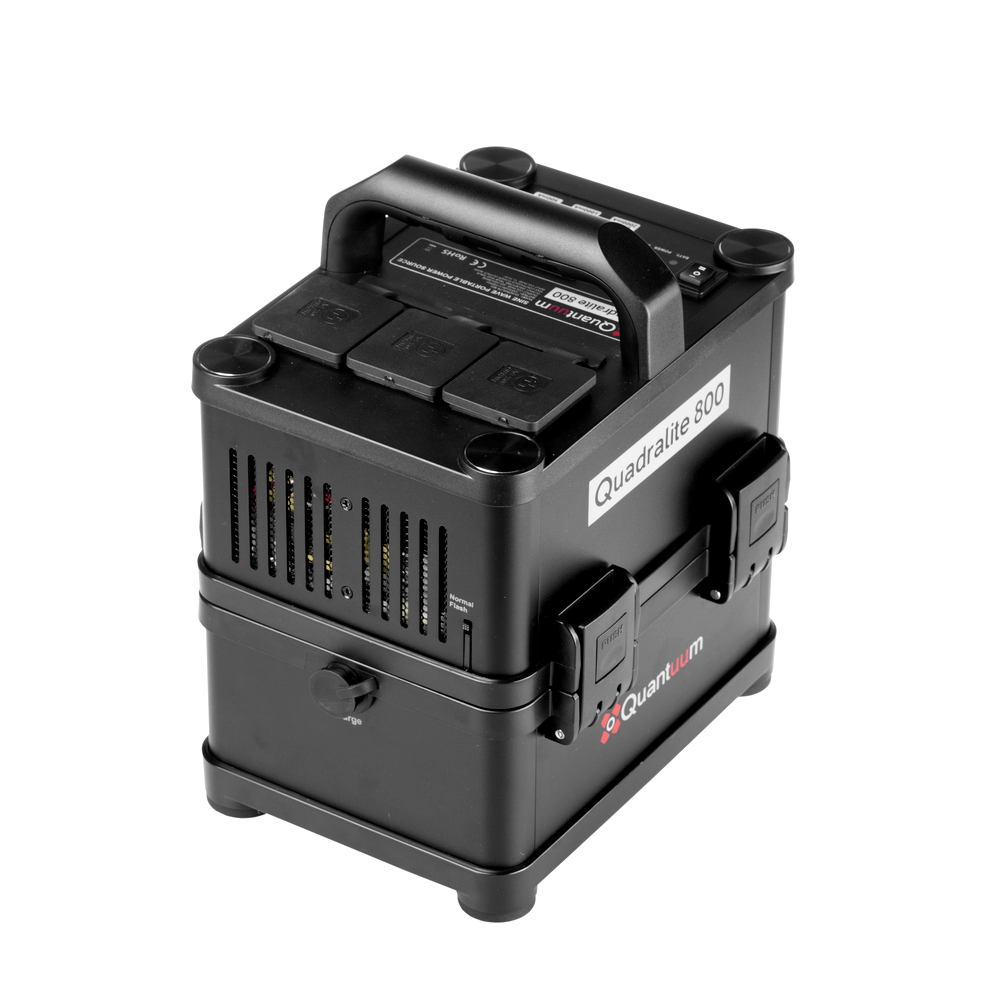

Quadralite 800 Powerpack

Power for a longer shoot

Quadralite 800 Powerpack can power several flash units simultaneously in locations without access to mains electricity. This gives photographers the freedom to plan shoots in a wide range of interesting locations. The battery is efficient enough to deliver about 150 full-power flashes even with flash units totaling 2000 Ws connected. Its high power reserve and efficiency mean recycling speed drops only slightly compared with mains operation, ensuring comfortable workflow. Quadralite 800 Powerpack supports flash equipment with a combined maximum flash energy of up to 5000 Ws.

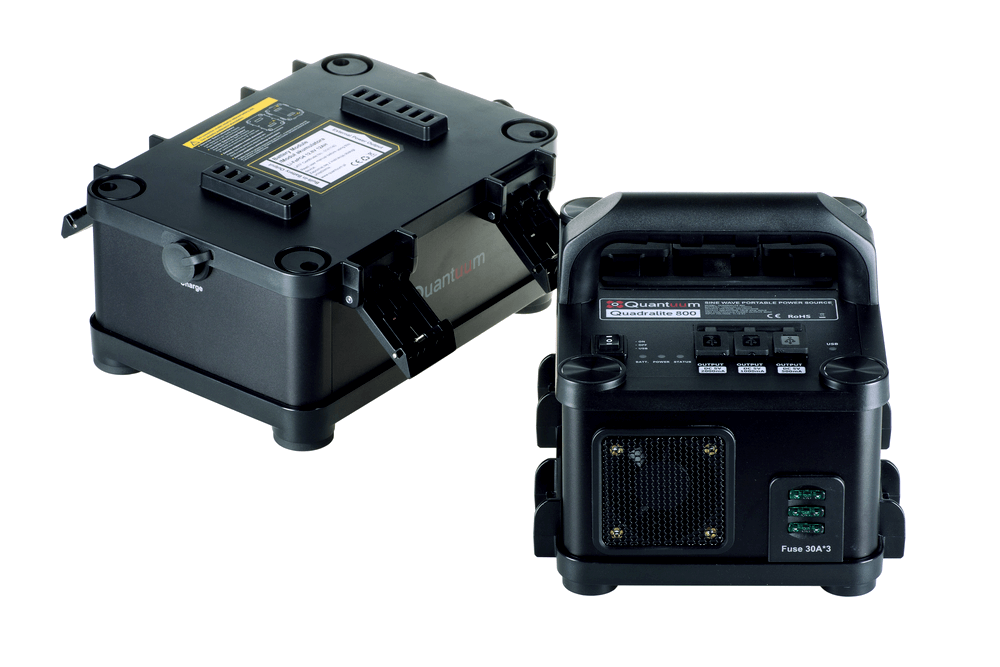

The power supply features a wide, convenient handle and a standard carrying case for easy transport. It consists of two modules—an inverter and a battery—so a depleted battery can be replaced quickly. If required, the unit can also operate from an external battery, such as a car battery.

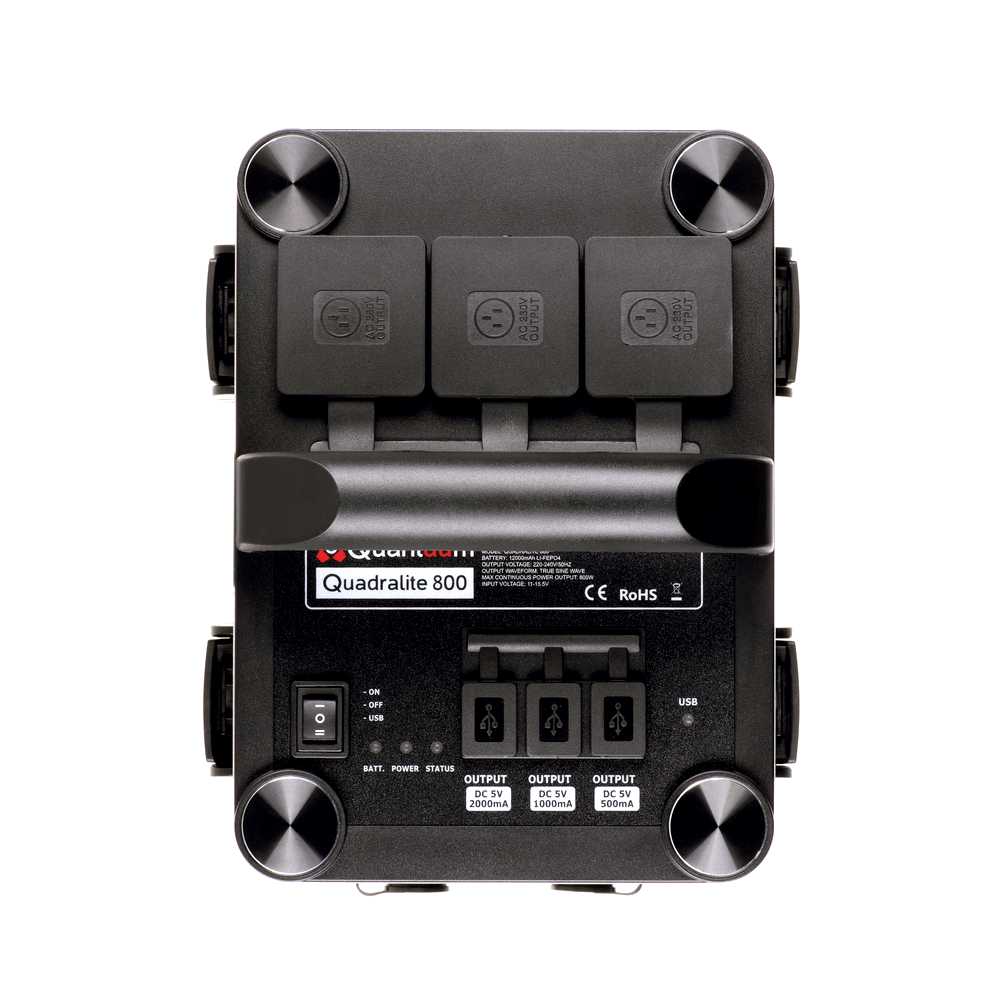

Quadralite 800 Powerpack supplies AC power with a full sine-wave output, an important feature when operating flash units. It can also successfully power computers, monitors and other electronic devices useful to photographers and filmmakers. The inverter module provides three 220–240 V/50 Hz AC outlets and three USB ports, which can power devices such as phones, camera chargers and continuous lights. For example, it can power a 100 W lamp for approximately 80 minutes.

Quadralite 800 Powerpack includes a set of safety systems, including protection against excessive discharge of an external battery—particularly important when such a battery is used. The inverter module is actively fan-cooled and also features overheat protection.

Detailed warranty terms for Quadralite products can be found on the Warranty page.

Quadralite 800 Powerpack

Features

A spare Atlas PowerPackgets you back to shooting quickly and extends flash operation on location.

Specification

Technical data

All essential product parameters in one place.

Quadralite 800 Powerpack
Model
Quadralite 800 Batterypack
Product type
Battery inverter for powering studio flashes
Continuous power in Normal mode:
750W
Peak power in Flash mode:
1400W
Performance in Flash mode:
~500 flashes/600Ws ~400 flashes/700Ws ~150 flashes/2000Ws
Flash recycle time in Flash mode:
1500Ws ~1s 3000Ws ~2-3s 5000Ws ~5s
Output sockets:
3xAC 3xUSB
Input voltage range:
11-15,5V
Output voltage/frequency:
220-240V/50Hz
Voltage waveform:
full sine wave
Harmonic distortion:
3%
Standby current draw:
0.25A in mode Normal 0.9A in mode Flash
Efficiency:
91%
Battery type:
Li-FePO4
Nominal battery capacity:
12Ah (12.8V)
Charging time:
Approx. 3 h (with included 5 A charger)
Operating temperature range:
10–45 °C
Storage temperature range:
-30–70 °C
Power supply
220 – 240V / 50Hz
Fuse:
3x30A
Dimensions
267x206x292mm
Weight (with battery):
6.78kg

QuadraGear

QuadraGear – accessories for convenient and reliable work with equipment

QuadraGear is a family of accessories that complement Quadralite lighting and photographic systems. It includes products needed for powering, mounting, fastening, transport and convenient organization of equipment when working in the studio and outside (…)

Explore the full product line →
OFFICIAL QUADRALITE STORE Quadralite 800 Powerpack
Order online →

COMPATIBILITY

Compatible products

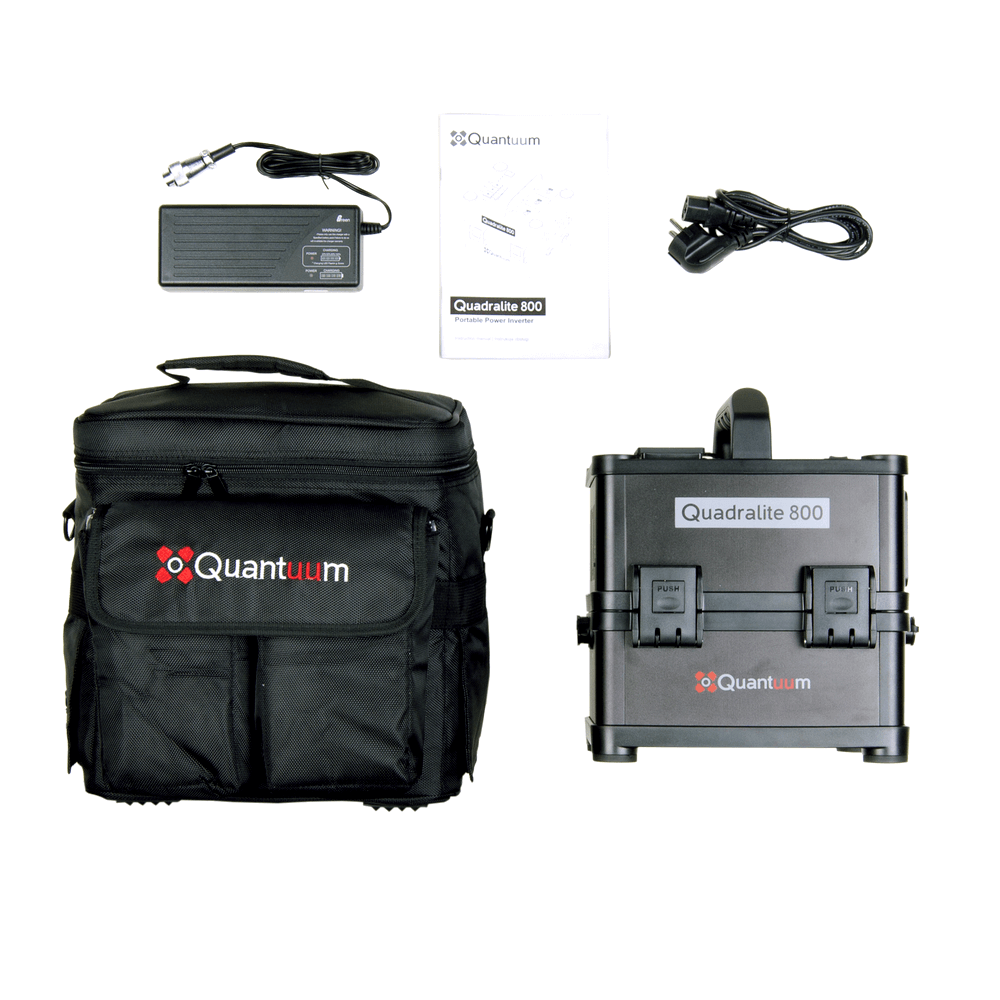

What’s in the box

What’s in the box

  • ✓Battery Quantuum Quadralite 800 Powerpack
  • ✓Charger
  • ✓Connection cable lights Quantuum DP
  • ✓Connection cable for car cigarette-lighter socket
  • ✓Carrying case
  • ✓User manual
