Quadralite Flash Stroboss 36 EVO MFT
Quadralite Stroboss 36evo is the latest version of the popular Stroboss 36. It retains the strengths of its predecessor while introducing a new power system that improves both efficiency and recycling speed.
- ✓Model: Quadralite Flash Stroboss 36 EVO MFT
- ✓Compatible with: Micro 4/3 Olympus and Panasonic
- ✓Guide number (Power 1/1 @ 105mm, ISO 100): 36
- ✓Zoom range: 24–105 mm (15 mm with diffuser panel)
- ✓Adjustable flash-head position: horizontal: 0–270°, vertical: –7–90°
- ✓Flash duration (t0.1): 1/350 (1/1) – 1/20000 s (1/128)
Quadralite Flash Stroboss 36 EVO MFT
Full power wherever you need it
Quadralite Stroboss 36evo is the latest version of the popular Stroboss 36. It retains the strengths of its predecessor while introducing a new power system that improves both efficiency and recycling speed.
Stroboss 36evo is a small flash with impressive capabilities. Despite its compact size, it offers many functions previously reserved for much larger professional units. It weighs only 290 g, and when mounted on the camera with the head facing forward it is just 95 mm high.

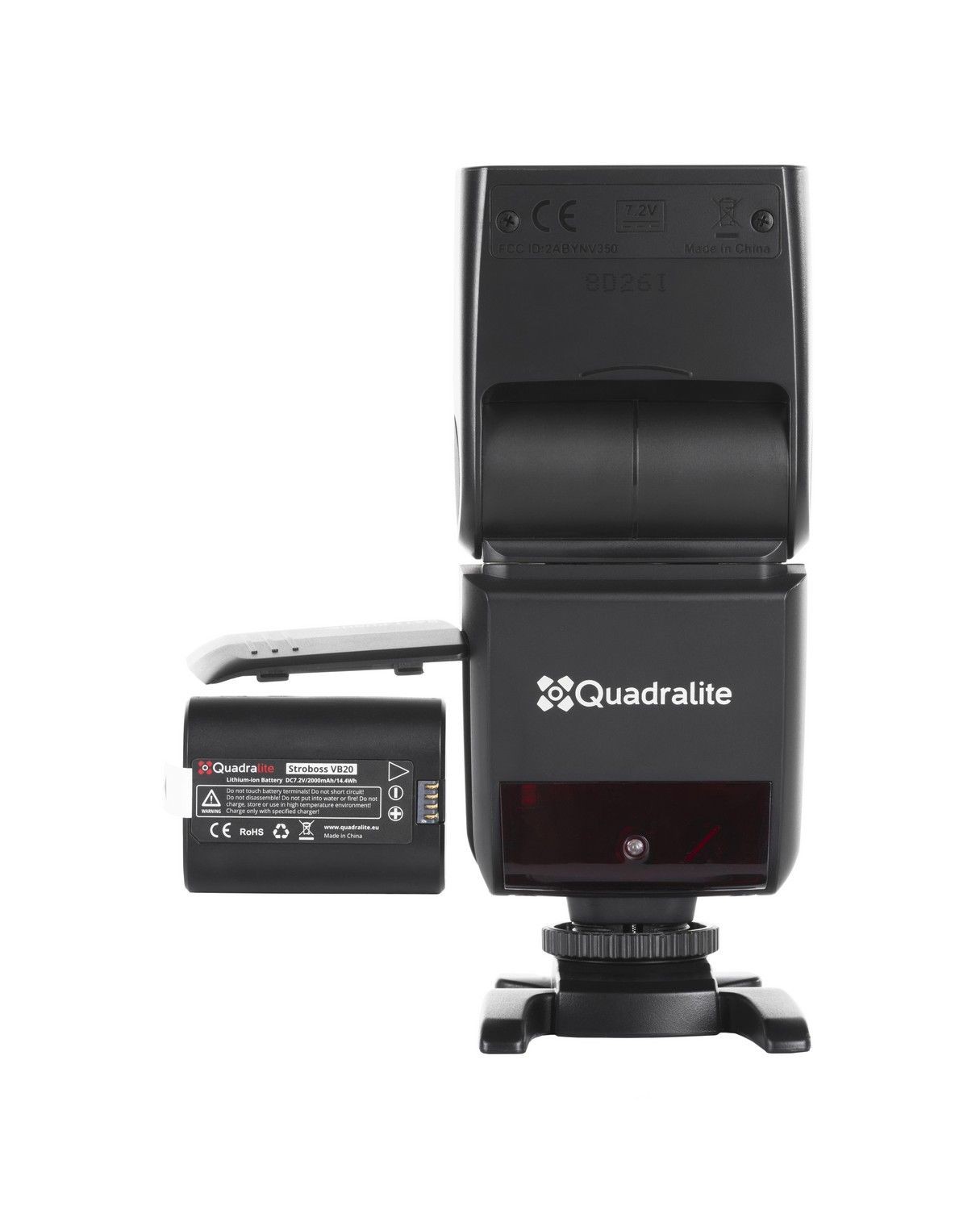

Stroboss 36evo uses a specially designed 2000 mAh lithium-ion battery and therefore recycles very quickly. Even after a full-power flash it is ready again in just 1.7 s. A full charge provides more than 500 full-power flashes, and the charger included in the set recharges the battery in less than 2.5 hours.
An important feature of Quadralite Stroboss 36 is the built-in Navigator X transmitter, which allows it to act as a Master controller for other Quadralite flashes such as Pulse Pro X, Atlas 600 and 600 TTL, Reporter 360 TTL, Stroboss 60 and Stroboss 36. It can also be switched to Slave mode and controlled remotely from a Navigator X transmitter or from Stroboss 60 and 36 flashes.
Stroboss 36evo is compatible with the camera’s TTL system and supports automatic flash-power selection. It can be used with the automatic and semi-automatic exposure modes available in the camera, making it simple and friendly even for photographers who are just starting to use flash.
Stroboss 36evo supports high-speed synchronization up to 1/8000 s. Its zoom works automatically or manually from 24 to 105 mm, while the flash head rotates through 270° horizontally and 97° vertically for flexible bounced-light techniques.
Quadralite Stroboss 36evo is available for Sony, Canon, Nikon, Micro Four Thirds (Olympus and Panasonic) and Fujifilm X systems.
Detailed warranty terms for Quadralite products can be found on the Warranty page.

Features
Selected specificationsQuadralite Stroboss 36evo is the latest version of the popular Stroboss 36.
Dimensions
Adjustable flash-head position
Flash duration (t0.1)
Specification
Technical data
All essential product parameters in one place.

- Model
- Quadralite Flash Stroboss 36 EVO MFT
- Compatible with
- Micro 4/3 Olympus and Panasonic
- Guide number (Power 1/1 @ 105mm, ISO 100)
- 36
- Zoom range
- 24–105 mm (15 mm with diffuser panel)
- Adjustable flash-head position
- horizontal: 0–270°, vertical: –7–90°
- Flash duration (t0.1)
- 1/350 (1/1) – 1/20000 s (1/128)
- Flash color temperature
- 5600 K ± 200 K
- Flash modes
- TTL/M/Multi
- Flash power adjustment range
- 7 EV in 1/3-EV increments, 1/1–1/128
- Flash synchronization
- High Speed Sync (HSS) up to 1/8000 s
- Stroboscopic mode
- Yes (for 90 flashes in series, 99 Hz)
- Flash triggering
- Wireless, hot shoe, photocell
- Wireless control
- built-in Transmitter/Receiver Navigator X
- Operating modes
- Master, Slave, Off
- Range
- ≤50m
- Number of groups
- 3 (A, B, C)
- Number of channels
- 32 (1~32)
- AF assist
- No
- Battery type
- 7.2 V / 2000 mAh lithium-ion battery
- Flashes per charge
- 500
- Flash recycle time
- approx. 0.1–1.7 s
- Power supply
- Stroboss 36evo PowerPack
- Dimensions
- 150 x 62 x 38 mm
- Weight (with battery)
- 290 g
- Firmware update
- via USB
Stroboss
Quadralite Stroboss – a system of compact on-camera flash units
Quadralite Stroboss is a family of flash units mounted on the camera or used off-camera as part of a wireless lighting setup. The series includes many models designed for different camera systems, as well as successive generations of lights that differ in (…)
Explore the full product line →COMPATIBILITY
Compatible products

Quadralite Stroboss 36evo - Charger
SKU: 4878✓Direct fit
View product →
Quadralite Stroboss VB-20
SKU: 4868✓Direct fit
View product →
Quadralite Air 260
SKU: 4119✓Direct fit
View product →
Quadralite Air 395
SKU: 4212✓Direct fit
View product →
Quadralite Litebox 50x50 softbox
SKU: 4425✓Direct fit
View product →
Quadralite Holder multi-purpose
SKU: 4373✓Direct fit
View product →What’s in the box

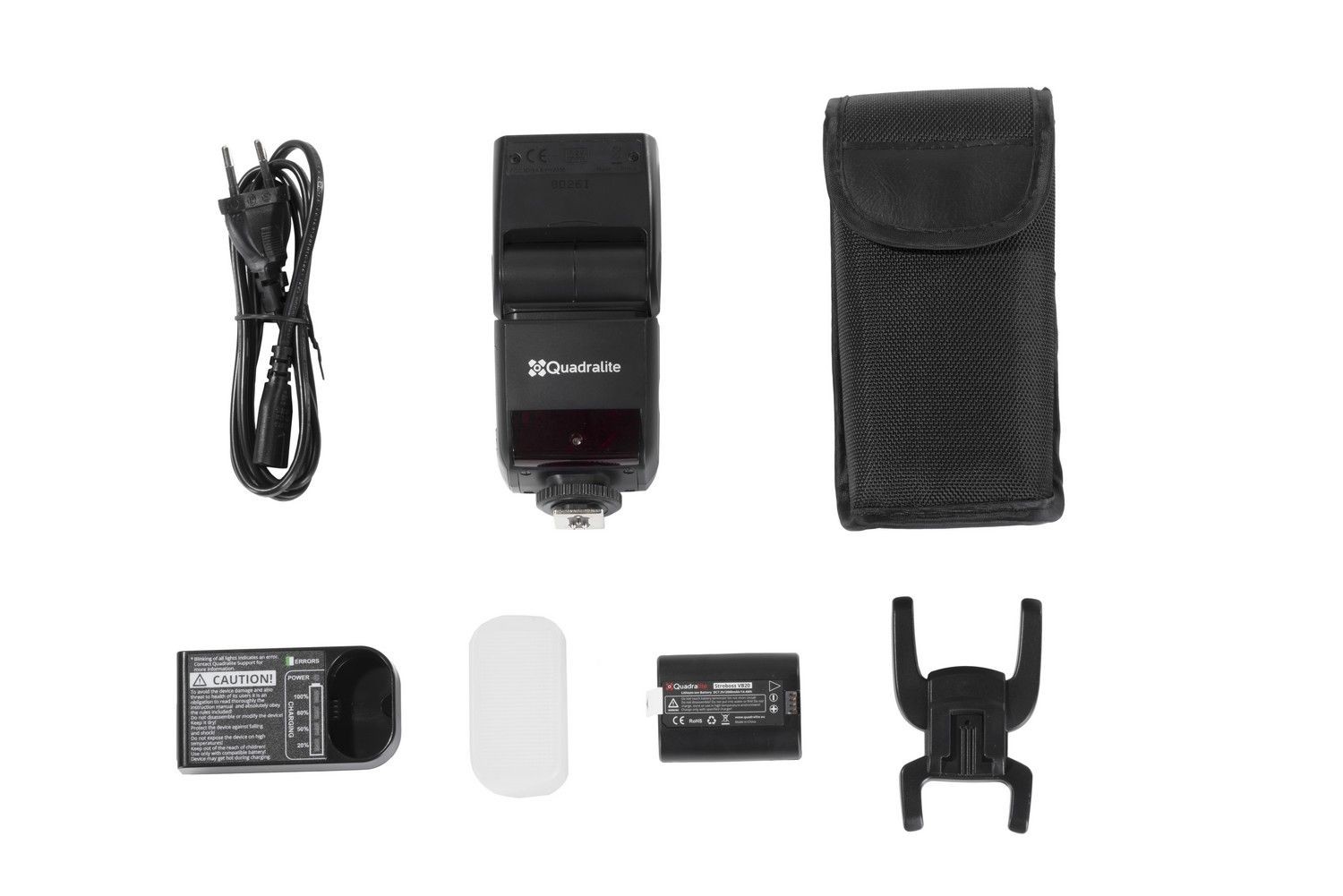

What’s in the box
- ✓Flash Quadralite Stroboss 36 EVO MFT
- ✓Case
- ✓Battery
- ✓Charger
- ✓Flash stand
- ✓Diffuser
- ✓Original packaging
